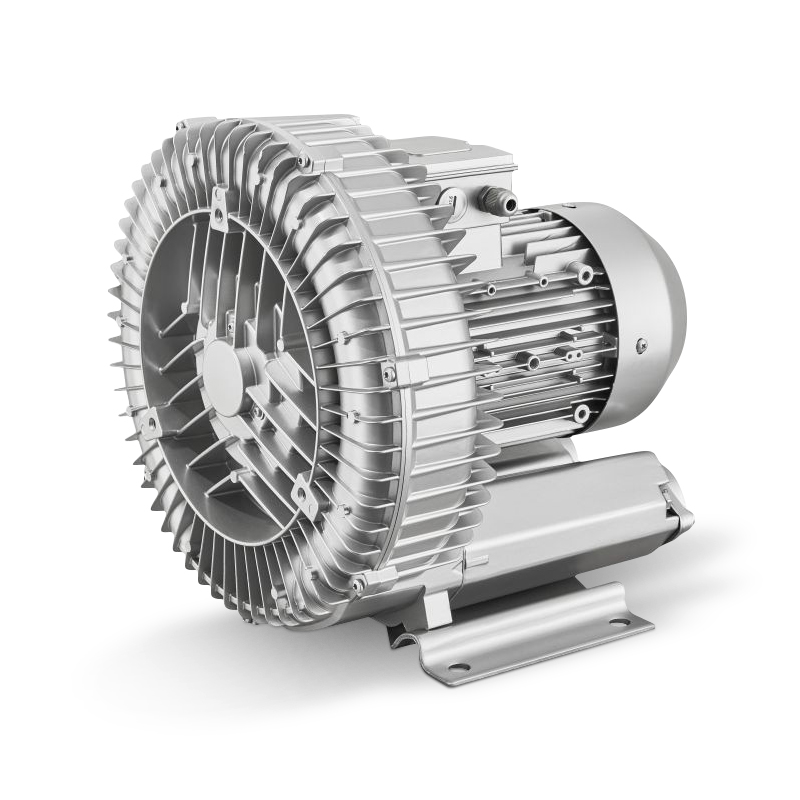

2JM810H07 4.3KW Side Channel Blower
- ADC12 Aluminium Alloy
- 100% Copper Coil
- Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
- High suction air and high pressure blowing
- Can work continuously for 24 hours
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
| Frequency | 50 (Hz) | 60 (Hz) |
| Rated Power | 4.3(kW) | 4.6(kW) |
| Rated Voltage | 345-415△600-720Y (V) | 380-480△660-720Y (V) |
| Rated Current | 9.5△/5.5Y(A) | 9.5△/5.5Y (A) |
| Max Airflow | 530(m3/h) | 620 (m3/h) |
| Max Vacuum | -200 (mbar) | -160 (mbar) |
| Max Pressure | 200 (mbar) | 160 (mbar) |
| Sound | 70 dB(A) | 74 dB(A) |
| Weight | 54 (kg) | 54 (kg) |
Key Features
✅ Regenerative Side Channel Principle Air is repeatedly accelerated and pressurized inside the side channel. Single-stage models for general high pressure; two-stage versions deliver significantly higher pressure and vacuum for heavy-resistance pipelines.
✅ 100% Oil-Free Clean Air Output No lubricant inside the air flow path. Delivers uncontaminated air, perfectly suitable for food, pharmaceutical, packaging and clean-room applications.
✅ Die-Cast Aluminum Alloy Construction ADC12 aluminum casing and impeller, lightweight, high rigidity, excellent heat dissipation and corrosion resistance. Compact footprint for easy machine integration.
✅ Direct-Drive & Heavy-Duty TEFC Motor Impeller mounted directly on motor shaft, no belt or coupling loss. IP55, Class F insulation, sealed high-speed bearings for long continuous operation. Built-in thermal protection optional.
✅ Dual Function: Pressure Blowing & Vacuum Suction One unit for both positive pressure blowing and negative pressure vacuum. Ideal for vacuum holding, material suction and high-pressure air supply.
✅ Low Vibration & Low Pulsation Airflow Precision dynamically balanced impeller, smooth and pulse-free air output, quieter than Roots blowers under same working conditions.
✅ Global Voltage & Frequency Support Standard single-phase 220V, three-phase 220V / 380V, 50/60Hz. Custom voltages and IE3 energy-saving motors on request.
✅ Rich Optional Accessories Inlet filter, silencer, pressure relief valve, vacuum gauge, check valve and mounting brackets can be supplied as matched kits.
Typical Applications
- Air knife drying systems: bottle drying, profile blow-off, surface water removal
- Vacuum handling: CNC vacuum table, label holding, bag suction, pick & place
- Pneumatic conveying: plastic pellets, light powder, granular material transfer
- Wastewater & aquaculture: deep aeration, oxygen supply
- Packaging machinery: bag opening, filling, waste collection
- Printing & textile: web blowing, yarn suction, ink drying
- Food processing: sorting, dewatering, product transfer
- Environmental equipment: gas extraction, waste gas transfer
- Medical & laboratory clean air supply
Note: Standard JMET side channel blower is designed for clean, dry, normal-temperature air. Not suitable for oil mist, sticky dust, strong corrosive, flammable or explosive gas without special customization.
FAQ
How do I choose the side channel blower?
What voltage and frequency options are available?
Ring blowers are commonly available in single-phase and three-phase motors, such as 220V, 380V, 415V, and can be designed for 50Hz or 60Hz. If the blower will be exported to different countries, confirm the local voltage, frequency, plug type and whether a frequency inverter is required.
Can it run continuously, and how much maintenance is needed?
The impeller rotates without contact with the pump body, so the blower is oil-free and requires very low maintenance. The main wear parts are the bearings. Under normal conditions, it can run continuously for long periods, but the installation site should be clean, dry and well ventilated.
How can noise and vibration be controlled?
Side channel blowers are generally quieter than Roots blowers, but noise can still increase if the filter is blocked, the installation base is unstable, or the bearings are worn. Adding silencers, shock absorbers, flexible hose connections and clean inlet filters can help reduce noise and vibration.
What certifications and protections should I check before purchasing?
For industrial and export applications, check motor protection class, insulation class and relevant certifications such as CE or UL. If the blower will be used in explosive or corrosive environments, confirm whether an ATEX/IECEx motor, special sealing, stainless-steel material or a pressure relief valve is required.
